How to Run a Diesel Heater Into a Tent Safely

A clean passthrough for 2.5 in and 3 in ducts without leaks or damage

If you have ever tried to route a diesel heater into a tent, you know the pain. Half zipped doors. Flapping fabric. Tape that fails at 2 a.m. Cold air sneaking in anyway. This guide shows a clean, permanent solution that keeps heat in and bugs out. You will see how to install a magnetic passthrough on mesh or just the tent itself, which duct size to pick for 2 kW, 5 kW, and 8 kW heaters, and how to keep everything safe in the field.

What you will learn

  • Why zippers, flaps, and tape fail in cold or wind
  • Two clean install paths: mesh window or tent wall
  • Step by step install with photos
  • 2.5 in vs 3 in duct size and heater output
  • Safety checklist and common mistakes
  • FAQ on adhesives, rolling the tent, and bug sealing

The problem with zippers, flaps, and tape

  • Door gaps create pressure leaks that waste fuel and pull cold air in
  • Tape and foam shift as fabric flexes and condensation forms
  • Unsecured ducting saws against fabric and can damage the wall
  • Bugs and dust find every tiny gap

A dedicated passthrough gives the duct a secure home, supports the load, and seals the opening.

The clean solution in plain terms

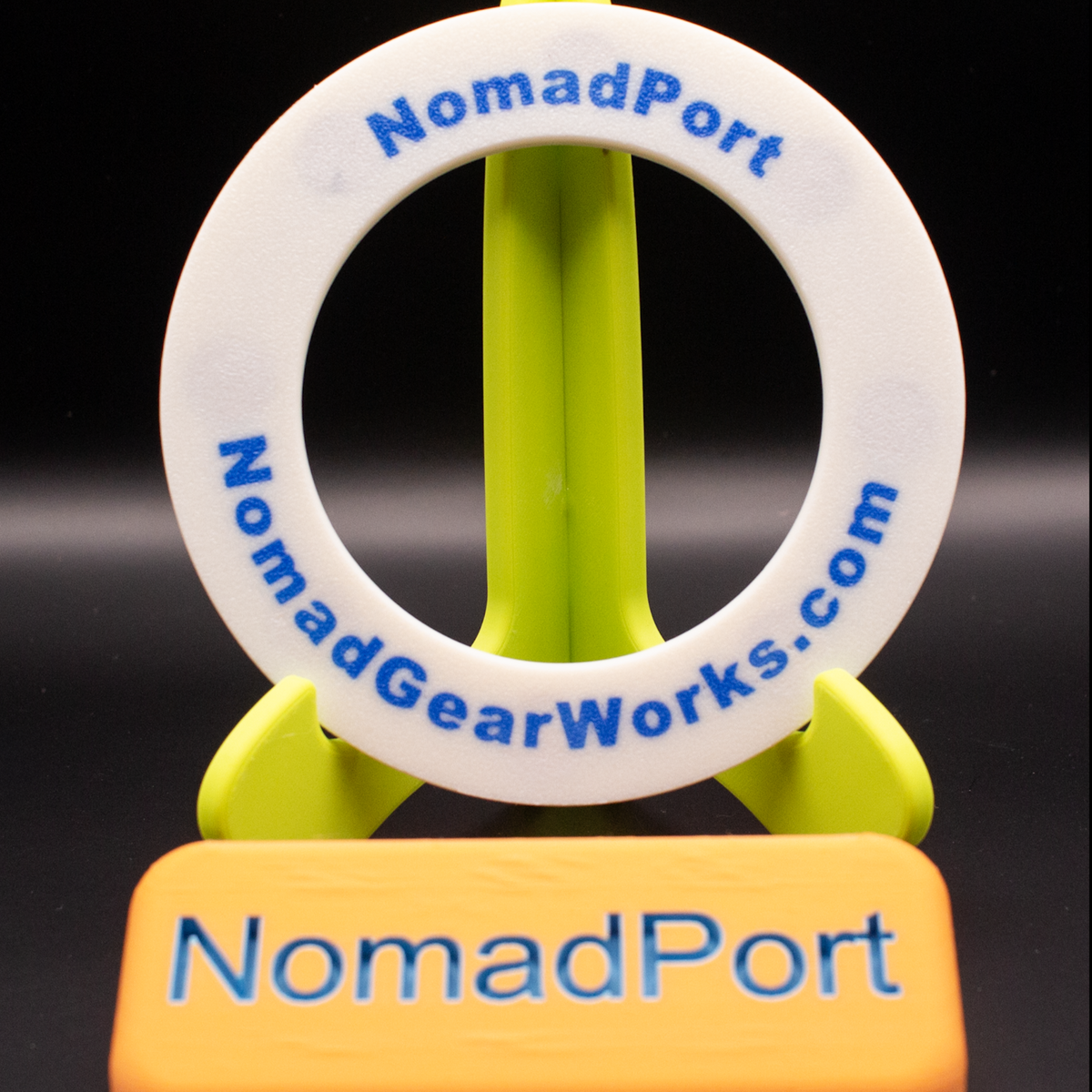

NomadPort is a two-piece ring that sandwiches the tent wall. Magnets align accessories like couplers or a cover cap. Install once, then snap on your duct side when you camp, or snap on the cap when you do not.

It works on mesh or canvas. For mesh you bond both halves through the mesh, then cut the opening. For tent walls you bond through the material, then cut the opening. The ring spreads load and prevents ripping.

Tools and materials

  • NomadPort two piece ring
  • Optional: NomadCap magnetic cover
  • Optional: 2.5 in or 3 in magnetic coupler with hose collar
  • Adhesive
    • Works well: quality cyanoacrylate super glue gel
    • Canvas option: polyurethane construction adhesive or contact cement if you prefer longer open time
  • Sharp craft knife or new utility blade
  • Optional: Alcohol wipes for surface prep
  • Optional, but always recomeded: CO detector for tent interior

In my experience: super glue has given the best bond in testing. Canvas has more texture, so some folks like polyurethane. Both approaches are fine. Align carefully and allow full cure time.

Install on a mesh window flap

Test fitting and gluing a circular passthrough position on tent mesh

Test fitting and gluing the ring on the mesh

  1. Pitch the tent so fabric is taut. Choose a flat area on the mesh that rolls clean when you pack.
  2. Dry fit both halves to confirm clearance.
  3. Clean both ring faces and the mesh with alcohol. Let dry. (optional)
  4. Apply a thin even bead of adhesive to the inner face of one ring.
  5. Place it inside the tent against the mesh holding it in place, while someone else proceeds to the next step.
  6. Place the outer ring on the other side. Press together and align. Magnets help hold position while the glue grabs.
  7. Allow full cure per your adhesive.
  8. Use a sharp blade to cut out the mesh inside the ring. Follow the inner edge carefully.
Cutting a clean circular opening in tent mesh inside a plastic ringCutting out the mesh after cure

Install on a tent wall

Two plastic rings clamping a tent wall before cutting the opening

Bond both ring halves through tent wall

  1. Pick a flat panel that rolls clean and does not have seams near the cut.
  2. Wipe tent ring area with alcohol and let dry. (optional)
  3. Apply adhesive to one ring. Someone else does the same on the other side...
  4. Align, snap, and let cure fully.
  5. Cut the circular opening using the ring as a guide. Take your time.
Showing the hole cut in the tent wall inside rings

Cutting the hole... badly...

Attach your duct in seconds

Magnetic heater duct coupler attached to a tent passthrough ring

2.5 in coupler snapped to the port and clamped to hose

  1. Clamp your hose to the coupler’s heat rated collar.
  2. Offer the coupler to the ring. The magnets self align.
  3. That is it. No zip ties. No tape. A firm, repeatable connection.

When not in use, snap on the NomadCap to block bugs and dust.

Magnetic cover sealing a tent passthrough opening

Magnetic cover on the port when not in use

Which size to use

  • 2.5 in duct is common for many 2 kW heaters
  • 3 in duct is common for many 5 kW and 8 kW heaters
  • If you are between sizes, choose the coupler that matches your hose. The port accepts either size via the proper magnetic coupler

Safety checklist for tent heaters

  • Exhaust stays fully outside the tent at all times
  • Place the heater on a stable surface with clear intake and exhaust
  • Use a battery CO detector inside the tent
  • Keep fabric clear of hot outlets and bends
  • Route cords and hoses to avoid tripping
  • Ventilate a small amount to avoid stale air and condensation

Rolling and storage

  • The ring sits low profile and stays installed
  • Let adhesive cure before first roll
  • Roll the panel smoothly without hard creases across the ring
  • Try to roll it so the ring is near the end of the roll making it bend the least.
  • Do not roll with cover on

Troubleshooting

  • Bond feels weak on canvas
    • Clean again. Use gel super glue or polyurethane. Apply even pressure while curing
  • Hose slips at clamp
    • Use a quality stainless clamp and a collar rated for heat. Tighten evenly, but do NOT over tighten
  • Draft at the port
    • Check that the coupler is fully seated. Snap on the cover when not in use

FAQ

Will this work on canvas tent walls, or only mesh?
Yes. It works on both. Canvas is thicker and more textured, so prep and cure time matter. A gel super glue works well. Polyurethane is an option if you prefer longer open time.

Will it damage the tent?
You will cut a clean circle inside the ring. The ring spreads load and prevents ripping. When installed correctly it rolls and stores like normal.

What about insects and dust?
Use the magnetic cover when the port is not in use. It snaps on in seconds.

Can I move it later?
It is a permanent install. Pick a location that rolls well and leaves your door free.

Which heaters is it for?
Use 2.5 in for many 2 kW units. Use 3 in for many 5 kW and 8 kW units. Match the coupler to your hose.

Want the exact parts shown

If you have questions about a specific tent fabric or adhesive, reach out. I am happy to help.
